Image EC Mid Wheel Power Wheelchair

$3,499.00$3,599.00

The Image EC Mid Wheel Drive Power Wheelchair from Drive Medical offers a reliable mobility solution for anyone that is on the go. Almost everything on this chair is adjustable; from a reclining backrest with adjustable headrest (that also folds down), to the height of the chair and to the flip up armrests, which allow easy transfer, that are height and width adjustable. The controller can be fitted onto either armrest allowing you to operate the chair with ease even if you have limited dexterity. The mid wheel drive provides you with a feeling of superior control, enhanced by a slim turning radius. The Image EC is the perfect choice for increasing your mobility and is stylish to boot. The included red and blue interchangeable panels let you decide how the power chair looks whenever you want.



SKU: 2800ECBU-RCL Category:

Description

  • Features

    • All units include both red and blue interchangeable color panels
    • Arms are width, height and angle adjustable

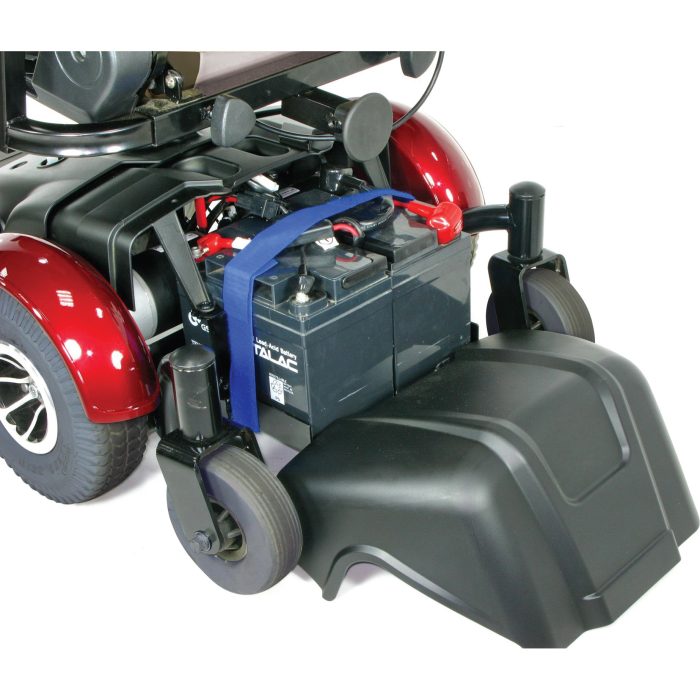

    • Comes with batteries, which are accessible from the rear of the chair
    • Deluxe height adjustable swivel captain’s seat
    • Drive mid wheels are flat free including coil spring tension suspension
    • Foot plate is angle, height and depth adjustable
    • Front and Rear semi-pneumatic swivel wheels
    • Front swivel anti-tippers have true independent adjustable suspension
    • Has been tested and surpassed the ANSI RESNA testing requirement
    • Helps prevent the drive wheels from losing contact with the ground
    • Joystick can be mounted on either side
    • Mid wheel drive allows for tighter turning radius
    • Off board charger
    • PG Controller with diagnostic fault codes
    • Positioning belt standard
    • Seat reclines for comfort and folds down for portability
    • Standard headrest is height adjustable
    • Uniquely designed Dynamic Drive suspension for greater climbing ability and comfort when traveling forward and in reverse

    Specs

    Weight Capacity 300 lbs.
    Top Speed 4 mph
    Maximum Range 15 miles
    Turning Radius 27.5″
    Climbing Angle
    Ground Clearance 2″
    Dimensions 42″ (L) x 24″ (W)
    Floor-to-Seat Height 20″ – 23″
    Seat Dimensions 18″ (W) x 18″ (D) | 20″ (W) x 18″ (D)
    Controller PG VR2 50A
    Motors (2) 24V x 200W x 3900 rpm
    Batteries (pair) 12V x 35AH (U1)
    Charger 4A Offboard
    Brakes Electromagnetic
    Caster Wheels 6″ x 2″ Solid
    Drive Wheels 10″ x 3″ Flat-free
    Base Weight 88 lbs.
    Battery Weight (pair) 53 lbs.
    Seat Weight 51 lbs.
    Total Weight 192 lbs.
    Warranty on Frame Lifetime
    Warranty on Electronic Controller/Drive Train Components 14 Months
    Warranty on Batteries 12 Months

Additional information

Captain Seat Size

18", 20"
