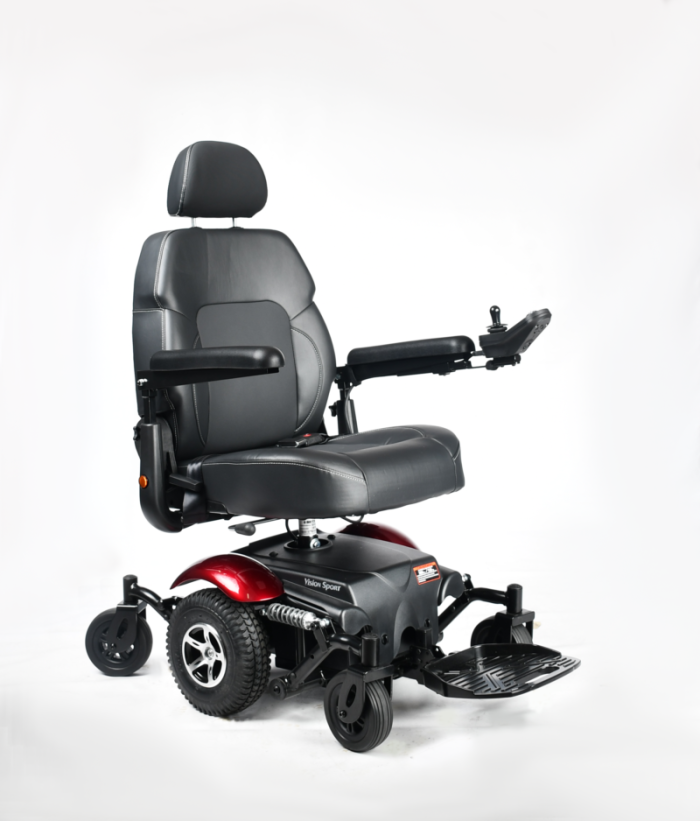

Vision Sport Power Wheelchair by Merits



The Vision Sport power chair by Merits Health is an economical, mid-wheel drive chair that doesn’t compromise on quality. With an impressive drive range, full suspension, extensive array of features, and plenty of customizable options, this chair is sure to meet all of your needs.

What sets the Vision Sport apart from the other power wheelchairs in this price range is that it features mid-wheel drive, as opposed to front-wheel drive. A mid-wheel drive powerchair offers the very best maneuverability and the smallest turning radius, so getting around tight corners and confined spaces is a cinch. Another benefit to a mid-wheel drive power wheelchair is that mid-wheel drive offers the most natural-feeling center of gravity compared to a front- or rear-wheel drive chair. In addition to having mid-wheel drive, the Vision Sport also features full suspension for an ultra-comfortable ride.


Product Summary

      • Weight Capacity: 300 lbs
      • Seat sizes: 18″ & 20″
      • Drive Range : 18 miles

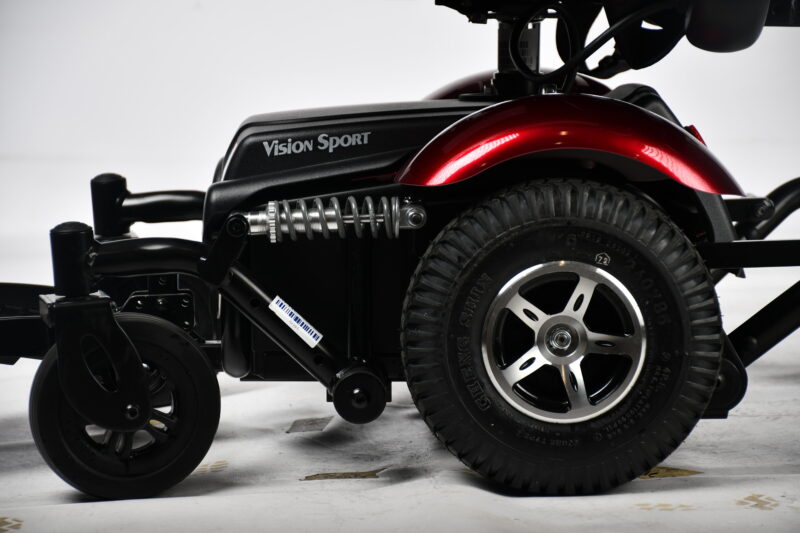

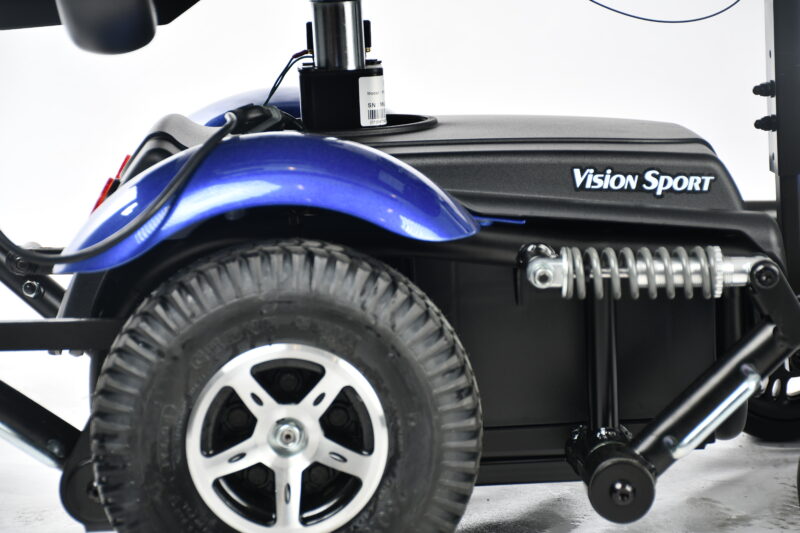

      • Full suspension for a smooth, comfortable ride
      • Mid-wheel drive provides tight turning radius of 20″
      • Height and width adjustable armrests
      • True mid-wheel drive: 20.6″ turning radius
      • 10″ knobby drive tires for superior traction

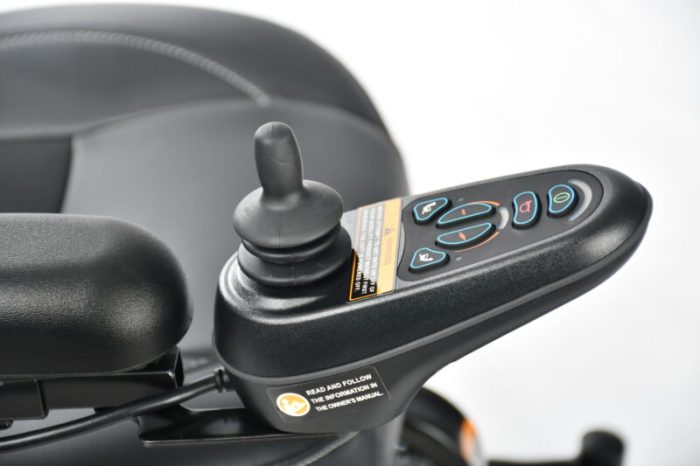

      • Dynamic LiNX controller for convenient Bluetooth programming and diagnostics
      • Colors: Red and Blue


Drive Range: 18.00 miles
Top Speed: 5.00 mph
Heaviest Piece: 90 lbs.
Turning Radius: 20.00″
Ground Clearance: 2.00″
Tire Type: Foam Filled
Maximum Incline Rating: 6 º
Drive Type: Mid Wheel Drive
Armrest Options: Height Adjustable
Width Adjustable
Legrest Options: Footplate
Upgradable Elevating Legrests
Seat Options: Reclining Back
Power Elevating Seat
Captain’s Seat
Power Chair Seat Width: 18″
Seat Depths: 18″
Back Height: 20″
Seat Height: 21.5″ to 23.5″
Maximum Seat to Floor Height: 23.50″
Overall Width: 24.00″
Overall Length: 34.00″
Joystick Options: Swing-Away
Adjustable Angle Footplates: Yes
Battery Type: Two 12V U1 Gel Batteries
Batteries Included: Yes
Battery Charger Type: Off Board
Drive Wheel Size: 10″
Caster Size: 6″
Rear Caster Size: 6″
Caster Type: Solid
Base Weight: 90.00 lbs.
Standard Seat Weight: 42.00 lbs.
Battery Pack Weight: 52.00 lbs.
Weight Without Batteries: 132.00 lbs.
Suspension: Yes
Seat Width Ranges: 18″ – 19″
