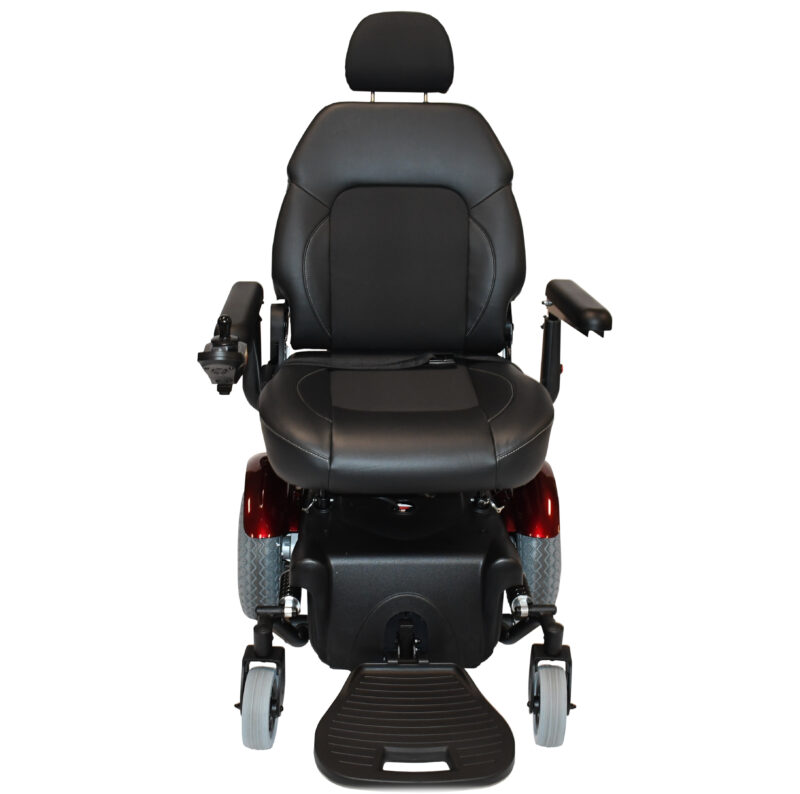

Vision Super Power Wheelchair by Merits


The Vision Super Heavy Duty Power Chair by Merits Health brings the convenient and tight maneuvering of a mid-wheel power chair to a heavy duty power chair. Ideal for users needing a higher weight capacity, the Vision Super Heavy Duty Power Chair will help you maintain your independence while going the distance.

What Makes This Different

The Vision Super Heavy Duty Power Chair was designed with durability and comfort in mind. The full front and rear suspension and 12-inch pneumatic drive wheels give you a smooth ride while easily negotiating different types of terrain. The 22-inch wide Captain’s Seat with a semi-reclining backrest ensures you stay supported and comfortable while driving up to 20 miles in a single charge.

The Vision Super Heavy Duty also offers an optional power seat upgrade that provides a full 10″ of elevation, raising from 24″ off the ground up to 34″. The power elevating seat must be ordered with a 20″ wide seat and offers a weight capacity of 400lbs. High up shelves, tall counters, and so many other items that once seemed out of your reach, are now accessible!


Product Summary

      • Weight Capacity: 450 lbs
      • Full front and rear suspension
      • Mid-wheel, highly maneuverable driving
      • Range: 20 miles
      • Optional seat elevator for 10″ of lift *reduces weight capacity to 400 lbs.
      • Real mid-wheel drive design for tight space maneuverability
      • 12″ knobby drive tires for superior traction
      • True mid-wheel drive: 20.7″ turning radius
      • Robust independent suspension
      • Premium, semi reclining ergonomic seat up to 135°
      • Colors: Red and Blue


Drive Range: 20.00 miles
Top Speed: 5.00 mph
Disassembles: No
Heaviest Piece: 121 lbs.
Turning Radius: 20.70″
Ground Clearance: 2.20″
Tire Type: Solid
Maximum Incline Rating: 8 º
Drive Type: Mid Wheel Drive
Foldable: No
Armrest Options: Height Adjustable
Width Adjustable
Legrest Options: Footplate
Upgradable Elevating Legrests
Seat Options: High-Back Seat
Power Elevating Seat
Power Chair Seat Width: 22″
Seat Depths: 22″
Back Height: 20″
Seat to Floor Height: 23.20
Overall Width: 27.20″
Overall Length: 35.40″
Joystick Options: Right
Adjustable Hanger Brackets: No
Battery Type: Two 12V, Group 22
Batteries Included: Yes
Battery Charger Type: Off Board
Drive Wheel Size: 12″
Caster Size: 6″
Rear Caster Size: 6″
Caster Type: Solid
Base Weight: 121.00 lbs.
Standard Seat Weight: 46.00 lbs.
Battery Pack Weight: 76.00 lbs.
Weight Without Batteries: 205.00 lbs.
Controller Type: Dynamic Shark 60A
Handles Thresholds of 2″ or More: Yes
Handles Thresholds of 2″ or Less: Yes
Seat Width Ranges: 22″ – 23″
